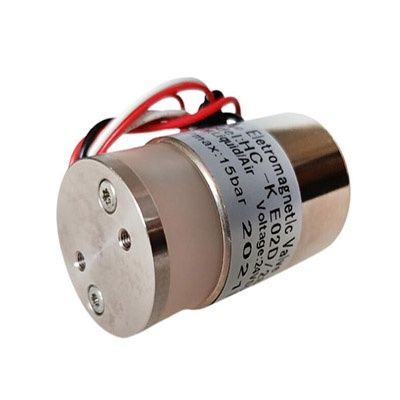

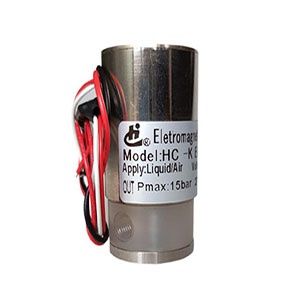

  • Miniature DC 24V 2-way Normally Closed FFKM Diaphragm Solenoid Valve
  • Miniature DC 24V 2-way Normally Closed FFKM Diaphragm Solenoid Valve
Miniature DC 24V 2-way Normally Closed FFKM Diaphragm Solenoid Valve Miniature DC 24V 2-way Normally Closed FFKM Diaphragm Solenoid Valve

Miniature DC 24V 2-way Normally Closed FFKM Diaphragm Solenoid Valve



Miniature DC 24V 2-way Normally Closed FFKM Diaphragm Solenoid Valve



Our Solenoid Operated Isolation Valves provide a completely inert and non-metallic fluid path for instrument designers. A flexible diaphragm is used to isolate the solenoid actuation mechanism from the fluid path. The valves are well suitable in the environmental and water analysis, and highly aggressive/high purity fluid in analytical chemistry and clinical diagnostics area.



Features

1. Long service life, easy to install

2. Strong acid and alkali resistant, and high reliability

3. Low power consumption, low noise

4. Fast response

5. Small dead volume, no leakage

6. Maintenance free

7. Mini size

8. Oil-free lubrication

9. No leakage

10. High efficiency



Materials

Body: PCTFE

Seal: FFKM



Application

1. Medical Diagnostic Analysis Instruments

2. Emissions measurement

3. Printing

4. Portable devices (water quality or environmental monitoring equipment)…



 Technical parameters

Model

HC-K E02D/28

Drive method

Solenoid

Type

2-way Normally Closed

Orifice (mm)

1.6mm

Material of valve body

PCTFE PFA

Outlet pressure (Mpa)

1.5

Interface

1/4-28UNF

Seal material

FFKM

Voltage

DC 24V

Power consumption (W)

6

Response time

< 30ms

Leak rate

0

Duty cycle

Working continuously

Fluid temperature

0 ~ 180

Environment temperature

0 ~ 60

Weight (kg)

0.07kg


Please feel free to contact us for more Solenoid Valves.
