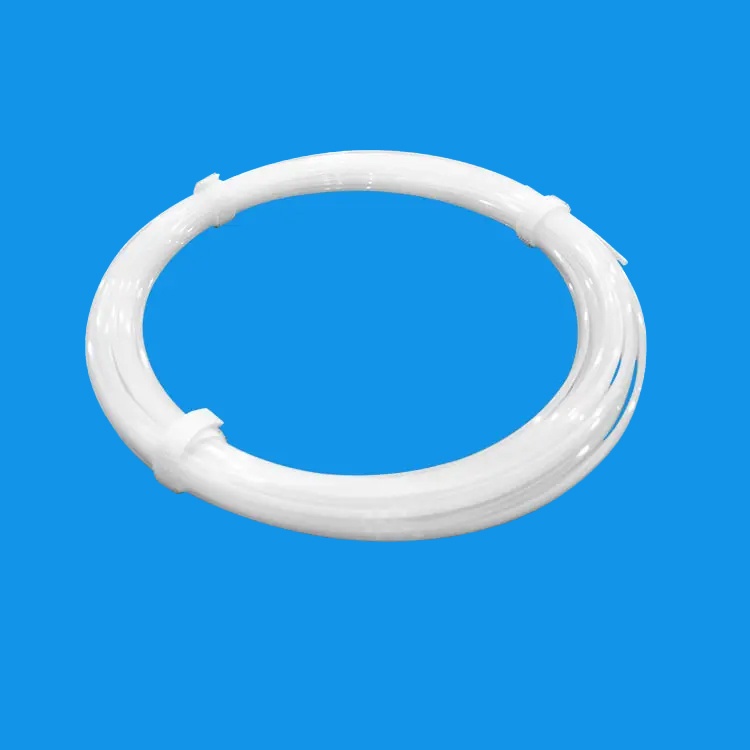

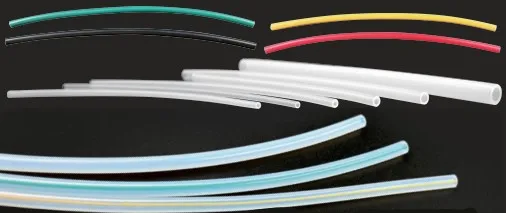

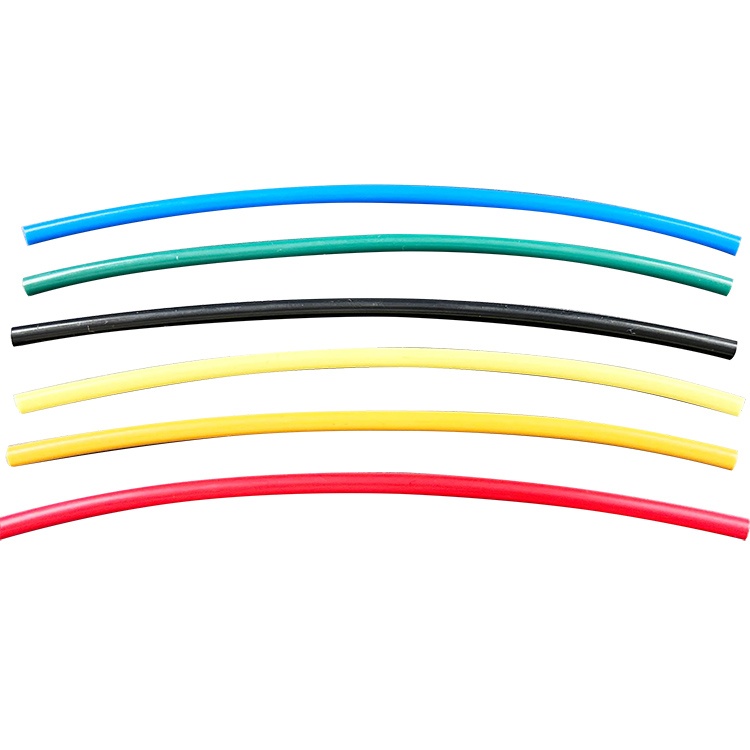

PTFE Tubings

Product No.：202422173040
Online Inquiry

Product Description

Polytetrafluoroethylene is called the king of plastics, and its English trade name is Teflon or PTFE. It has excellent chemical stability, corrosion resistance, sealing, high lubrication and non-stickiness, electrical insulation, good anti-aging ability, and excellent temperature resistance. PTFE itself is not toxic to humans.

Physical properties

The operating temperature is -51~250℃, allowing for rapid cooling and heating, or alternating hot and cold operations.

The surface has good non-stick properties, and no known solid materials can adhere to the surface. It is a solid material with the smallest surface energy. It has good climate tolerance, good radiation resistance and low permeability, and its surface and performance remain unchanged after long-term exposure to the atmosphere.

Chemical properties

PTFE is one of the best corrosion-resistant materials in the world today. Except for molten alkali metals and liquid fluorine, it is resistant to all other chemicals. It is widely used in various occasions that require resistance to strong acids, alkalis and organic solvents.

Model	Material	Pressure	Dimension		Single lap length
Model	Material	Pressure	ID	OD	Single lap length
008T16-030-20	PTFE	40Bar	0.3mm	1.6mm	20m
008T16-030-200	PTFE	40Bar	0.3mm	1.6mm	200m
008T16-050-20	PTFE	35Bar	0.5mm	1.6mm	20m
008T16-050-200	PTFE	35Bar	0.5mm	1.6mm	200m
008T16-080-20	PTFE	30Bar	0.8mm	1.6mm	20m
008T16-080-200	PTFE	30Bar	0.8mm	1.6mm	200m
008T16-100-20	PTFE	25Bar	1.0mm	1.6mm	20m
008T16-100-200	PTFE	25Bar	1.0mm	1.6mm	200m
008T20-100-100	PTFE	23Bar	1.0mm	2.0mm	100m
008T25-150-20	PTFE	17Bar	1.5mm	2.5mm	20m
008T30-200-20	PTFE	15Bar	2.0mm	3.0mm	20m
008T32-150-10	PTFE	23Bar	1.6mm	3.2mm	10m
008T32-150-100	PTFE	23Bar	1.6mm	3.2mm	100m
008T47-320-10	PTFE	4Bar	3.2mm	4.8mm	10m
008T47-320-100	PTFE	4Bar	3.2mm	4.8mm	100m
008T64-470-15	PTFE	3Bar	4.8mm	6.4mm	15m

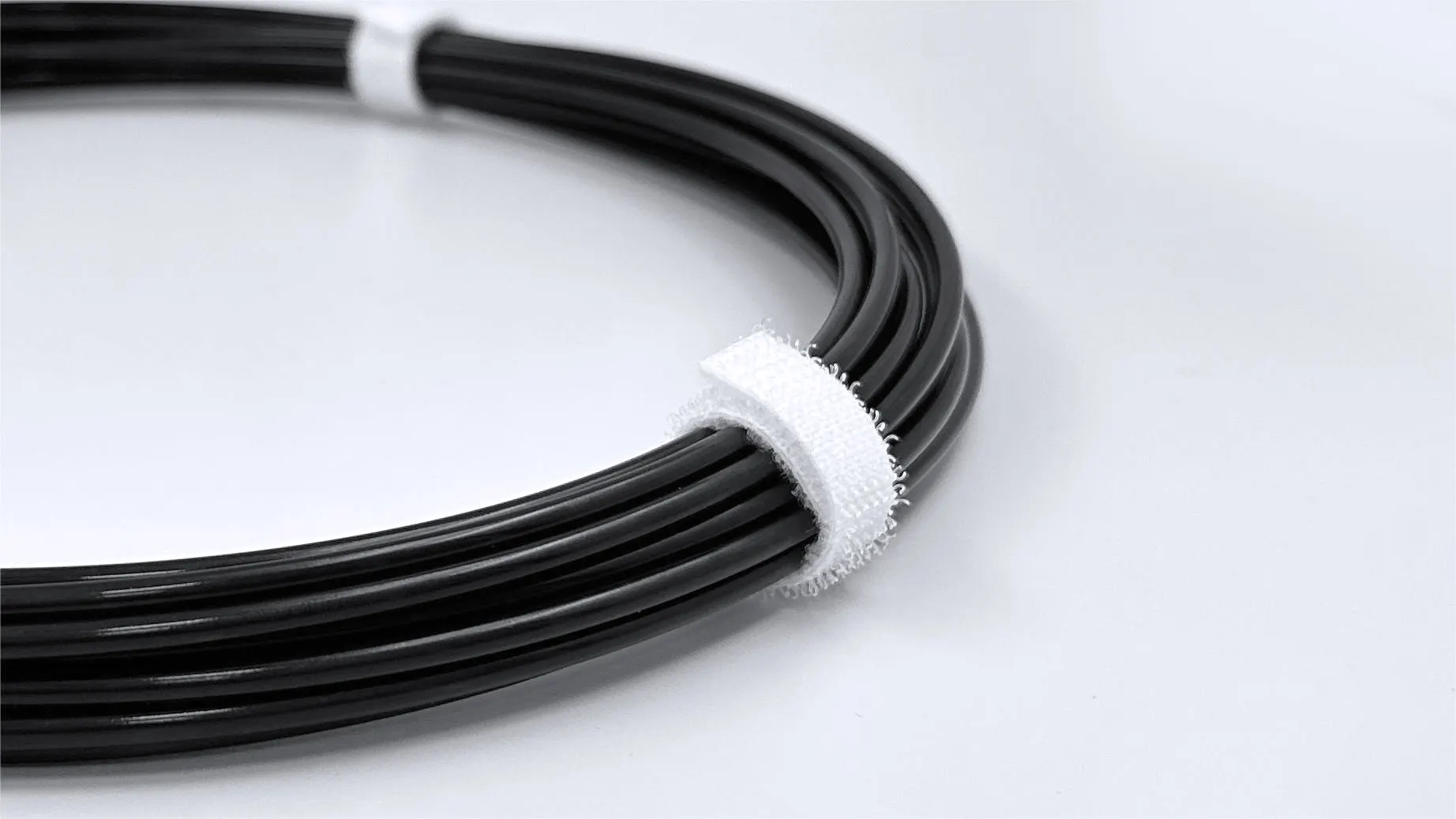

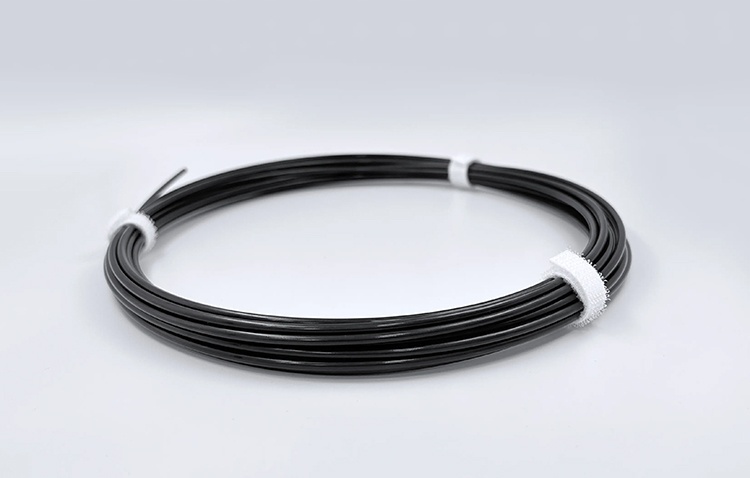

008T16-080-20B	PTFE（Black）	23Bar	0.8mm	1.6mm	20m
008T32-150-10B	PTFE（Black）	23Bar	1.6mm	3.2mm	10m

Note 1:

For specifications, sizes and colors not listed, please consult ORIWEN FLUIDICS for details.

Note 2:

The dimensional tolerance of the inner and outer diameter of the pipe fitting is ±0.05mm. Please consult for higher tolerance requirements.

Note 3:

Pressure refers to the maximum operating pressure, which is measured at 20°C. It is for reference only. The actual pressure resistance will change according to the customer's environment.

Inquiries and trial samples are welcome.
