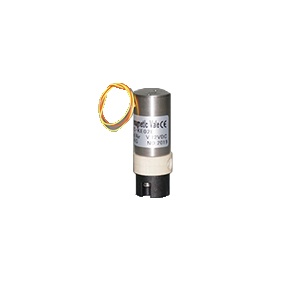

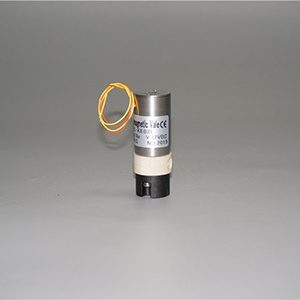

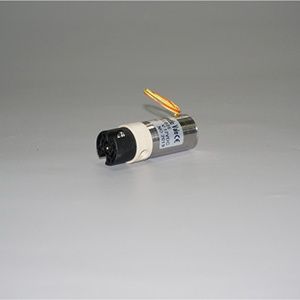

2 Way Normally Closed 12VDC/24VDC Isolation Solenoid Diaphragm Valve



2 Way Normally Closed 12VDC/24VDC Isolation Solenoid Diaphragm Valve



Our Solenoid Operated Isolation Valves provide a completely inert and non-metallic fluid path for instrument designers. A flexible diaphragm is used to isolate the solenoid actuation mechanism from the fluid path. The valves are well suitable in the environmental and water analysis, and highly aggressive/high purity fluid in analytical chemistry and clinical diagnostics area.



Features

1. Long service life

2. Corrosion resistance

3. Low noise

4. Maintenance free

5. Mini size

6. Oil-free lubrication

7. No leakage

8. High efficiency



Materials

Body: PPS

Seal: EPDM



Application

1. Medical Diagnostic Analysis Instruments

2. Emissions measurement

3. Printing

4. Portable devices…



 Technical parameters

Model

HC-KE02E

Drive method

Solenoid

Type

2 way Normally Closed

Orifice (mm)

2.0

Outlet Pressure (kpa)

300

Interface (mm)

1/4-28UNF

Material of valve body

PPS

Seal material

EPDM

Voltage(DC)

12V/24V

Current (A)

0.27/0.15±%

Power consumption (W)

3/3.6±5%

Response time

<30ms

Leak rate

0

Duty cycle

Working continuously

Fluid temperature

0 ~ 180

Environment temperature

0 ~ 60

Weight (kg)

0.11


Please feel free to contact us for more Solenoid Valves.
