Features and Application

Small and compact, self-starting, coated aluminum alloy chassis, high protection level.

Suitable for research institute, laboratory, chemical industry, medical areas, food additives…

Technical Specification

Speed resolution：0.1 rpm

Speed ​​range: 0.1 ~ 200rpm forward and reverse (reversible)

Control method: RS485 (MODBUD RTU) (4-20mA)

External control interface: start-stop, direction, speed control

Communication interface: RS485

Drive: interface protection, disconnection protection, high temperature protection

Applicable power supply: DC24V/15W

Power adapter: AC90V-260V/30W

Rated power: 10W

Working environment temperature: 0-40℃

Relative humidity of working environment <80%RH

Weight: 1.3kg

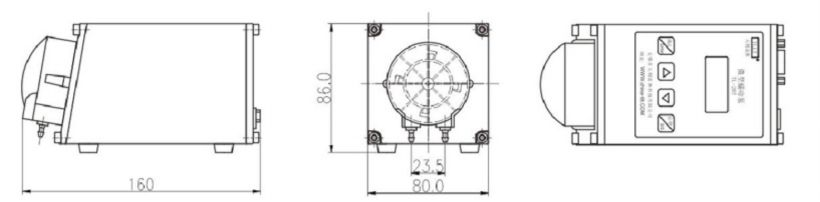

Dimensions
