Plunger diameter (mm)

Model

Specification

(μL/rev)

Flow range

(mL/min)

Remarks:

(Pls specify the type of tube connection OD and servo motor when ordering)

6

SQ1-57CFPP6-100ul/r-O6mm

50, 80, 100

0－50

1. The outer diameter of the tube is any specification between φ4~6mm

2. Servo motors are:

A Round Silver (Model: BLM57050-100),

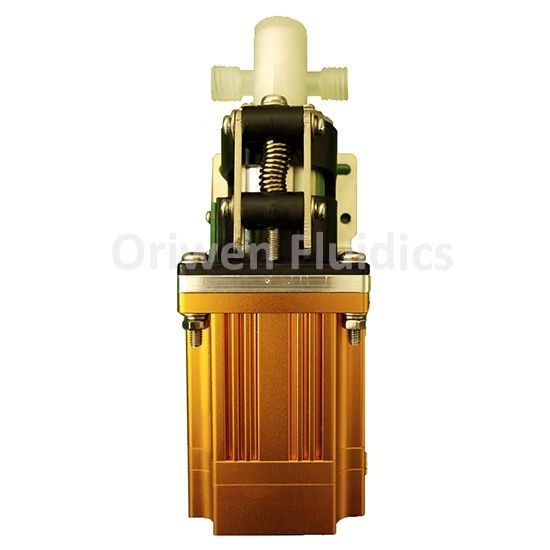

B square gold (model: 50W/100W with 485 communication including drive all-in-one machine)

8

SQ1-57CFPP8-200ul/r-O6mm

120, 150, 200

0－150
