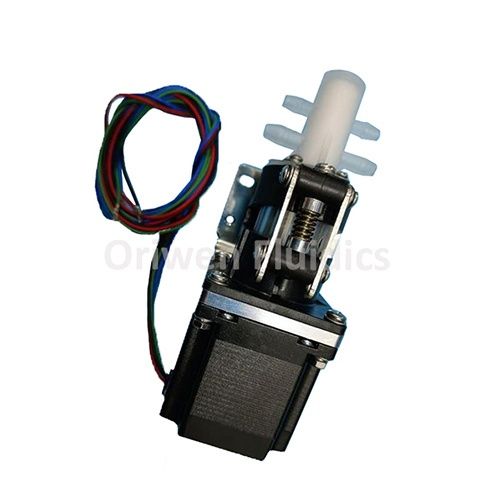

Double Nozzle Ceramic Plunger Pump for Hemodialysis Machine

Double Nozzle Ceramic Plunger Pump for Hemodialysis Machine


Double Nozzle Ceramic Plunger Pump for Hemodialysis Machine


Double Nozzle Ceramic Plunger Pump
 (VALVELESS pump) is suitable for hemodialysis machine, colon dialysis machine, biochemical experiments, etc.



1. Performance characteristics:

(1). Rated pressure: ≤0.2MPa

(2). Repeatability: ≤0.5%

(3). Medium: general liquid, oil, water and other liquids that do not crystallize and solidify

(4). Drive: 2-phase stepping motor, step angle 1.8°

(5). Phase resistance: 0.5Ω, phase current 2A

(6). Rated working speed: 0~500 rpm

(7). Voltage: DC24V   Input power: 50W

(8). Fluid temperature≤100


2. Specifications (selection table)

Plunger diameter (mm)

Model

Specification

(μL/rev)

Flow range

(mL/min)

Hose connection

6

SQ3-57SFPP6-100ul/r-HC

50, 80, 100

050

Small hose ID/OD, 3mm*5mm (4*6)

Large hose ID/OD, 6mm*12mm

8

SQ3-57SFPP8-200ul/r-HC

120, 150, 200

080

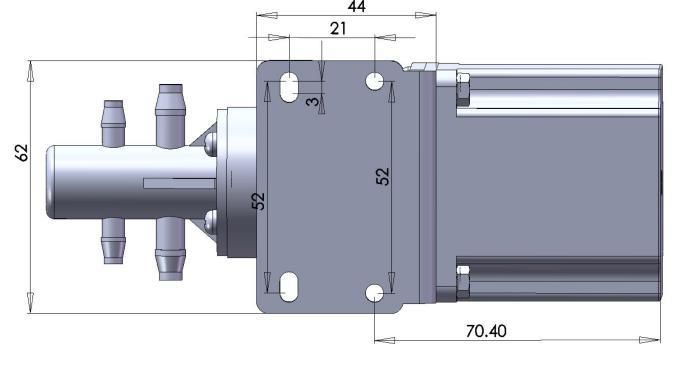

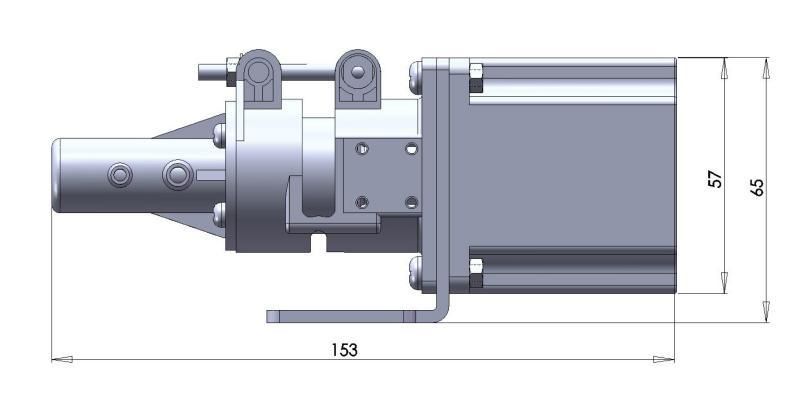

3. Installation Dimensions






Welcmome to check with us for more models.
